How To fit the BFB Carbon MP styles plitter to the BMW M3/M4 F80/F82/F83

2025-11-12 11:43

How To fit the BFB Carbon MP styles plitter to the BMW M3/M4 F80/F82/F83

Parts needed

- 3x M6 Bolts with Washers and Nuts

- 4x Self Tapping Screws

- 1x Double sided Tape

The guide:

STEP 1

- Remove the front left, right and middleunder-trays.

Step 2

- lf you are fitting to a light coloured car, wewould recommend applying some blackvinyl along the back edge where thecanards go.

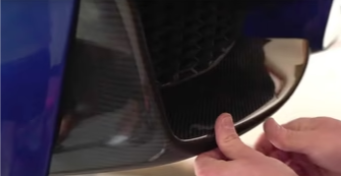

- Apply the double sided tape along theedge ofthe canard, remove the red film andthen push into place, ensuring you havepushed the canard as far back as possibleto leave as little gap as possible.

Step 3

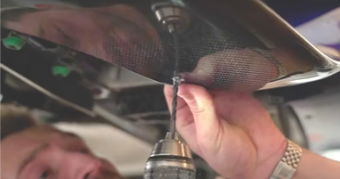

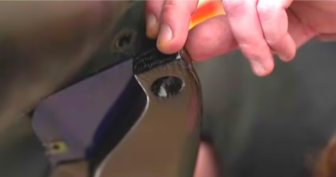

Once the canard is in place, use a 5mmdrill bit to drill a hole in the place where itcovers the OEM mounting hold for the undertray,

- Repeat on the other side.

- Refit the under-trays.

step 4

You will need a second person to help withthis step.

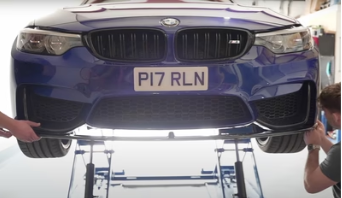

-Line up the lower splitter.

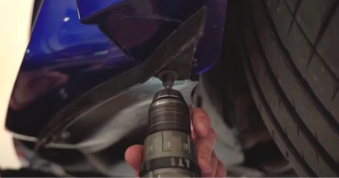

-Once Lined up; Use a 6.5mm drill bit to dril!one hole in the middle of the bumper(through the splitter) and one hole on eachside of the bumper (through the splitter).-Insert the bolts through the holed from thebottom, and hold the nut with a spanner totighten the bolts to hold the splitter flush,start with the outside bolts and finish withthe centre bolt.
